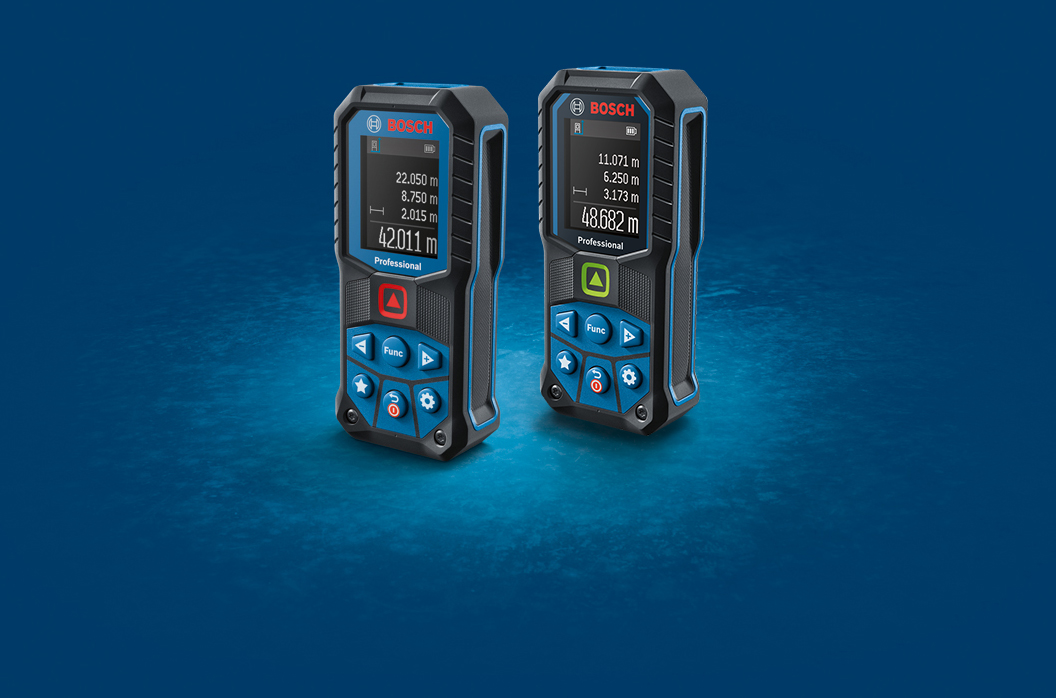

GLM 50-22 & 50-25 G Professional

Robust Design Meets Maximum Ease of Use

For even faster targeting

to withstand rough jobsites

and state of the art user interface

The most important data

GLM 50-22
GLM 50-25 G
Measuring range
0.05 – 50.00 m
0.05 – 50.00 m
Measuring accuracy
± 1.5 mm*
± 1.5 mm*
Laser class
635 nm (red beam)
515 nm (green beam)
Laser class
2
2
Dust and water protection
IP65
IP65

*plus use-dependent deviation

product-picture
gds-18v-1050h-anvil

Waist shape for greater ergonomics

better handling and more grip

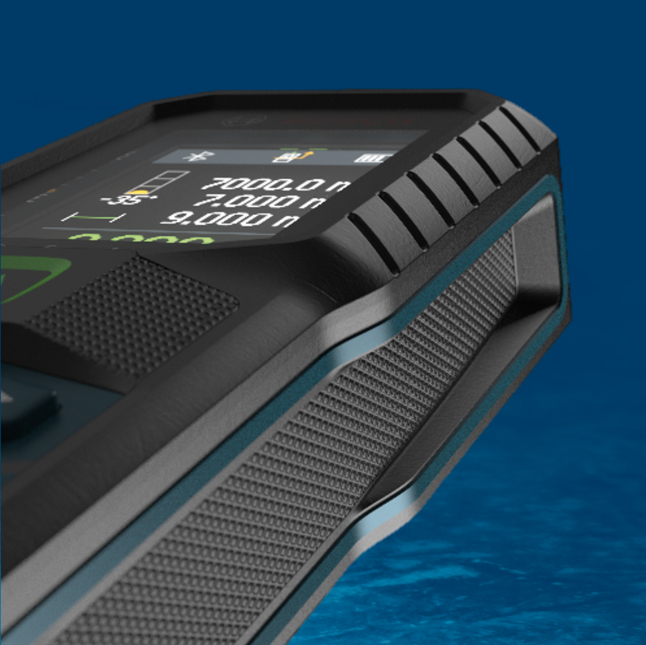

Robust design

  • Shock-absorbing design by reinforced 360° rubber cage
  • Reinforced housing design due to skeleton structure
  • Display protection due to thicker & recessed cover glass
  • Keypad protection recessed design & durable silicone
  • Protection of the measuring system stronger recessed lenses
gds-18v-1000-anvil

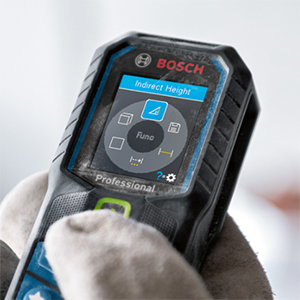

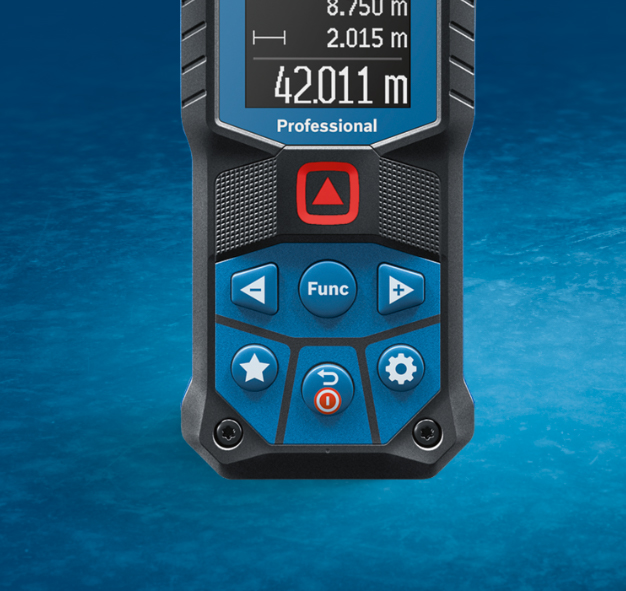

Intuitive user interface

makes handling convenient

gds-18v-1000-anvil

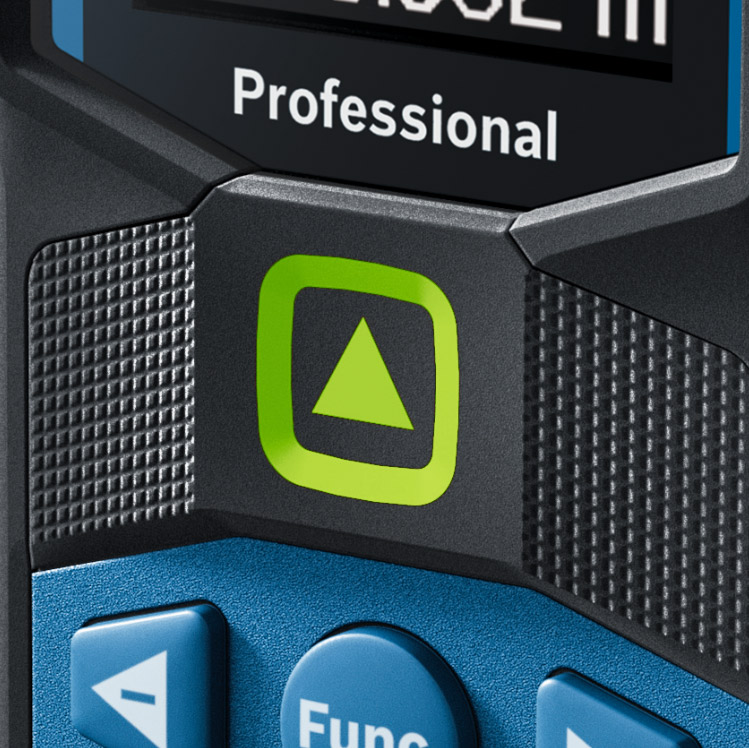

Recessed measuring button

Easy to distinguish even blindly

Dust & water protection IP65

  • Waterproof adhesives for cover glass, lenses & keypad
  • Uninterrupted rubber sealing between housing parts
  • Sealed battery cover with rubber sealing
  • Sealed screw connections with sealing washers
gds-18v-1000-anvil

Solid reference sides

safe stand on all six surfaces

Functions

Measurement accuracy ± 1.5 mm (plus use-dependent deviation)
Measuring range
Screen lighting
Color display
Big Numbers Mode Figures for fast and easy readability. Focus on essential information, fading out everything else on the display
IP65 Dust & Water Protection
Vibration Feedback for successful and failed measurement (GLM 50-25 G)
Green Laser Technology for better visibility (GLM 50-25 G)
Rechargeable Li-Ion Battery Pack BA 3.7V 1.0Ah A (optional)
Can be operated with 2 x AA batteries and optional BA 3.7V 1.0Ah A

Demonstration

Target Groups & Application

Wood Workers

  • Measure heights and lengths to calculate material needs
  • Conduct measurements for trimming and fitting objects
  • Conduct measurements of hard-to-reach areas

Metal Workers

  • Check dimensions for balconies, handrails, stairways
  • Check material needs for constructions

Drywall Constructors

  • Measuring heights and lengths to check material needs

Floor Layer & Painter

  • Calculate floor and wall areas
  • Measure and estimate material needs (laminate, tiles, carpet, paint)

Architects

  • Measuring room areas
  • Conducting measurements as input for creating floor plans and sharing them with customers, supervisors, material suppliers, etc.

Renovation

  • Conduct measurements to prepare customer offers

HVAC Installers

  • Measure room areas and calculate material needs for HVAC systems
  • Measure hard to reach places with indirect height measurement

Mechanical, Electrical and Plumbing

  • Calculating material needs for electrical installations & data wiring
  • Measuring for pipe fitting

Technical Data

GLM 50-22
GLM 50-25 G
Measuring range
0.05 – 50.00 m
0.05 – 50.00 m
Measuring accuracy
± 1.5 mm*
± 1.5 mm*
Operating temperature
- 10 °C to + 45 °C
- 10 °C to + 45 °C
Laser diode
635 nm, < 1 mW
515 nm, < 1 mW
Laser class
2
2
Automatic deactivation (laser/power)
20 s / 5 min
20 s / 5 min
Weight, approx.
0,17 kg (incl. batteries)
0,17 kg (incl. batteries)
Dimensions
119 x 53 x 29 mm
119 x 53 x 29 mm
Dust and water protection
IP65
IP65
Power supply
2 x 1,5 V – LR6 (AA)
2 x 1,5 V – LR6 (AA)
Measurement unit
m (default) / cm / mm / ft / inch
m (default) / cm / mm / ft / inch
Memory capacity (values)
10
10
Tripod thread (metal)
1/4"
1/4″

*plus use-dependent deviation

Product Naming

GLM Gewerblicher Laser-Entfernungsmesser (Professional Laser Measure)
50 50m Max Measuring Range
22 22 2nd Generation
22 Segment Differentiator (the higher the number the more product features)
GLM Gewerblicher Laser-Entfernungsmesser (Professional Laser Measure)
50 50m Max Measuring Range
25 25 2nd Generation
25 Segment Differentiator (the higher the number the more product features)
G Green Laser Beam

Feature Comparison

The GLM 50-2X family comes with a wide range of helpful functions for quick and convenient measurements. Find the most suitable laser rangefinder for your applications.

GLM 50-22
power-full
GLM 50-25 G
power-full
GLM 50-27 C
power-full
GLM 50-27 CG
power-full
Max. Measuring Range
50.00 m
50.00 m
50.00 m
50.00 m
IP65 & 1.5 m Drop Test
●
●
●
●
Increased Battery Runtime (Alkaline)
●
●
●
●
Works with New Li-Ion Battery
●
●
●
●
Vibration Feedback
–
●
●
●
Tilt Sensor
–
–
●
●
Bluetooth Connection
–
–
●
●
Favourite Button
●
●
–
–
Measuring Functions
power-fullLength
●
●
●
●
power-fullMin/Max Continuous
●
●
●
●
power-fullTape Measure
●
●
●
●
power-fullBig Numbers
●
●
●
●
power-fullArea
●
●
●
●
power-fullVolume
●
●
●
●
power-fullIndirect Height
●
●
●
●
power-fullIndirect Length
–
–
●
●
power-fullDouble Ind. Height
–
–
●
●
power-fullWall Area
–
–
●
●
power-fullStake Out
–
–
●
●
power-fullLevel
–
–
●
●
power-fullMemory
10
10
30
30

● Function included
– Function not included

Accessories

Li-Ion Battery Pack BA 3.7V 1.0Ah A

Art.-Nr: 1.608.M00.C43

Permanent power supply for longer work

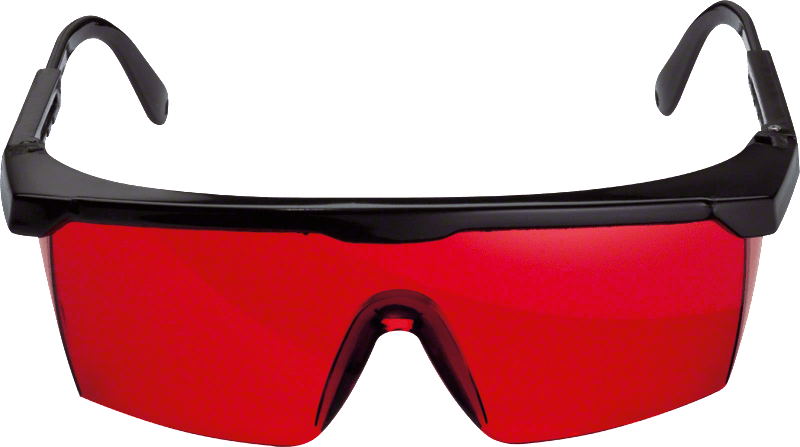

Laser viewing glasses (red laser)

Art.-Nr: 1 608 M00 05B

Improve the visibility of the red laser beam and make it easier to work in adverse lighting conditions

Laser viewing glasses (green laser)

Art.-Nr: 1 608 M00 05J

Improve the visibility of the green laser beam and make it easier to work in adverse lighting conditions

Tripod BT 150

Art.-Nr: 0 601 096 B00

Robust aluminium design. Stable on any floor, for working heights from 55 to 157 cm.

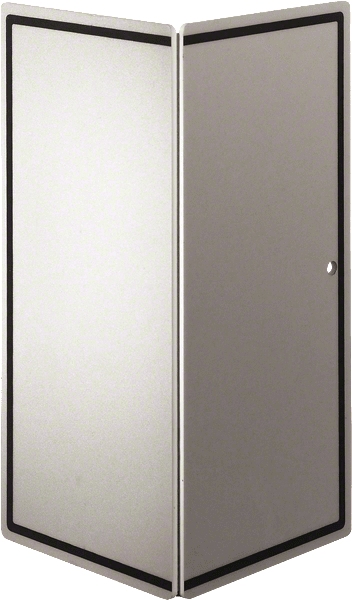

Target Plate

Art.-Nr: 2 607 001 391

Suitable for better reflection of the laser beam, for example outdoors or on dark surfaces

FAQ

The typical measuring accuracy is ± 1.5 mm. It’s realized under typical, meaning favorable conditions (reflective target, no adverse light conditions, normal temperature & humidity). Under unfavorable conditions the measuring accuracy is ± 3.0 mm (reflective target, strong backlighting, normal temperature & humidity). Additionally, a deviation per meter needs to be added: (± 0.05mm/m in favorable conditions; ± 0.15mm/m in unfavorable conditions).

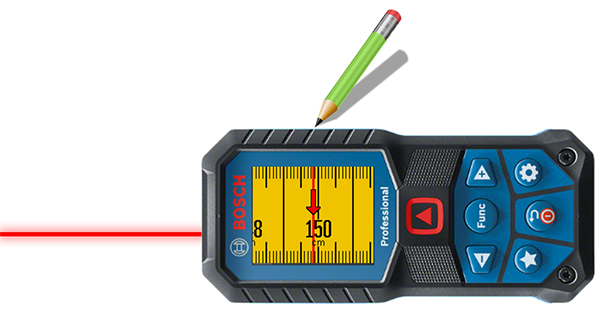

The default reference level is the rear edge of the tool (e.g. when placing it against walls) It can be also changed to the front edge (e. g. when measuring from the table edge), or to the center of the tripod thread for measurements on a tripod via the tool settings menu . The reference level setting is stored after the tool is switched off and on again.

The reference level is the marking that is shown in the display. The reference level is NOT the rear or front edge of the tool.

power-standard

No, only GLM 80 can be used with the R60.

Yes. Basically, the Big Numbers function is a continuous measurement mode. Instead of showing multiple measurements at once like in the Min/Max function (you still have that function as well), simply the live measurement is shown in full format to facilitate readability.

Yes, the Li-Ion battery pack fully works with both tools GLM 50-22 and GLM 50-25 G. In general, the Li-Ion battery pack is fully compatible to the whole GLM 50-2x product family.

No. The USB port is only intended for charging. It can be charged with a computer, but there is no data transfer possible.
