| Projection | 1 horizontal & 1 vertical green laser line & green plumb dots |
| Visible working range | up to 15 m |

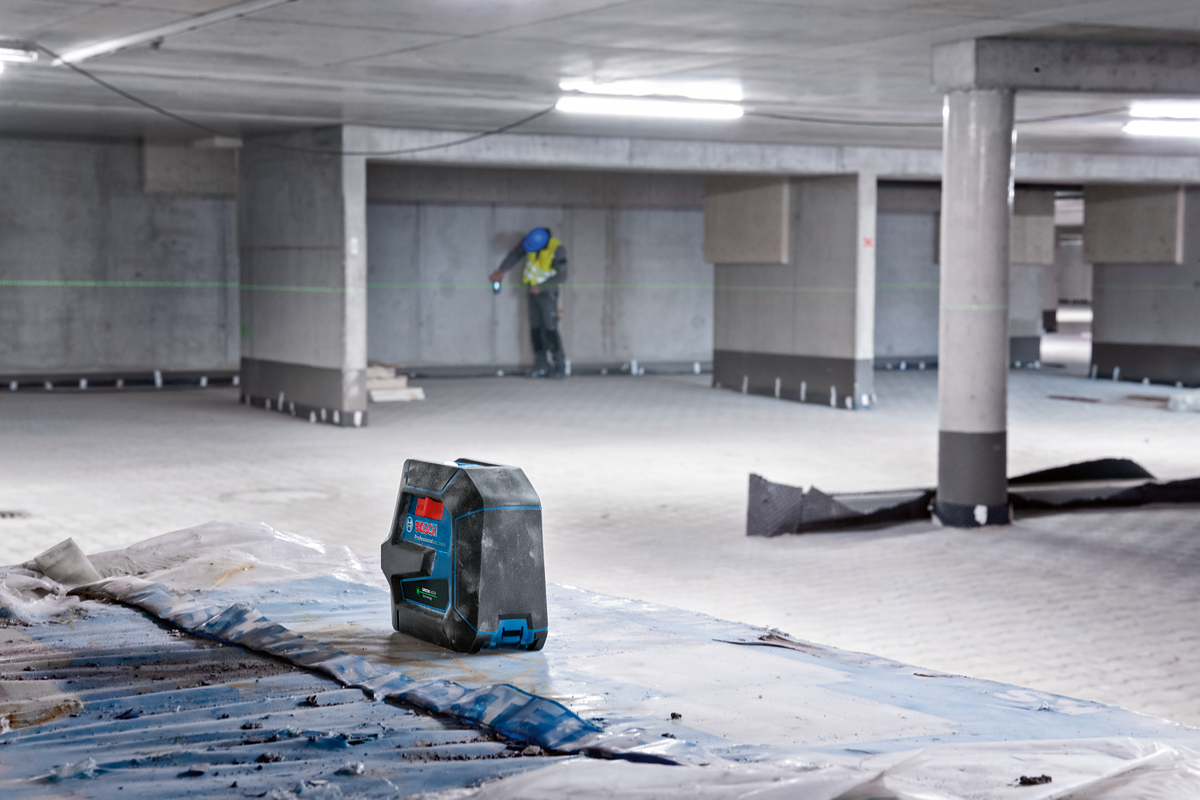

| Working range with laser receiver | up to 50 m |
| Levelling accuracy lines /dots |
±0,3 mm/m* ±0,7 mm/m* |
| Laser class | 2 |
| Laser type | 500 – 540 nm, lines < 10 mW dots < 1 mW |
| Self-levelling range | +/- 4 ° |
| Self-levelling time | < 4 sec |
| IP rating | 64 |
| Operating temperature | -10 °C...+45 °C |
| Storage temperature | -20 °C…+70 °C |
| Batteries | 4 x 1,5 V LR6 (AA) |
| Tripod mount | 1/4“ |
| Dimensions | 126 x 63 x 115 mm |
| Weight | 0,58 kg |
*plus use-dependent deviation |

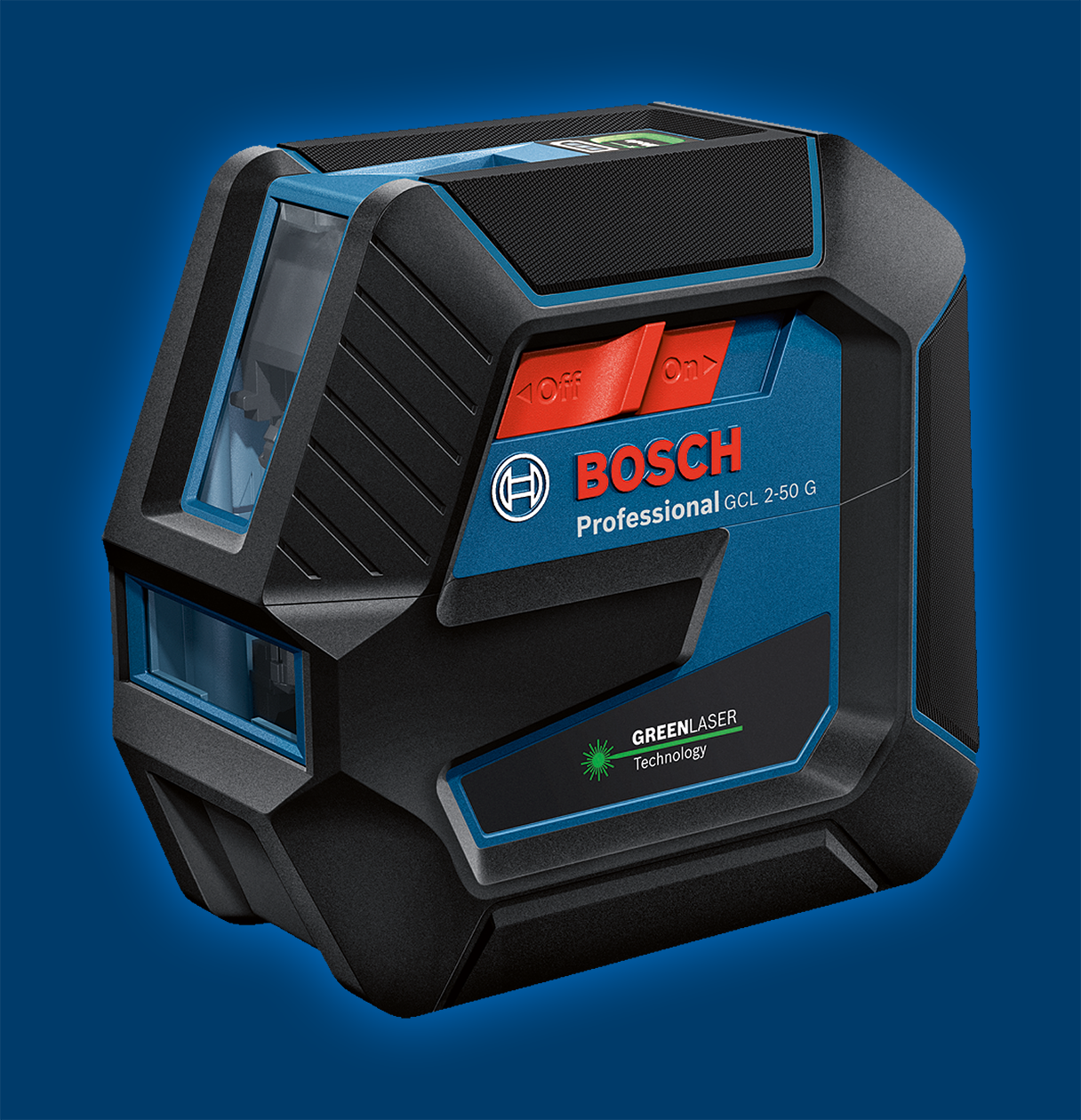

| GCL | Gewerblicher Combi Laser | Professional Line Laser |
| 2 | 2-axes laser lines |
| 50 | up to 50 meters range |
| G | Green beam technology |
We hope you enjoyed the WBT and it was instructive for you.
Please note there may be more than one correct answer in the multiple choice questions.
Good luck!
What function does the GCL 2-50 G have?
Horizontal levelling Vertical levelling Plumb point transfer Up to 50 m working range with the optional laser receiverWhy the GCL 2-50 G offers ideal handling?
Only two switch positions, no lock mode needed All around rubber body offers a good grip Simplified keypad with only one large button Green laser technology offers good visibilityWhat is the visible working range of the laser?
Up to 5 meters Up to 10 meters Up to 15 metersWe hope you enjoyed it and now have better understanding of the product!
Correct
Incorrect
