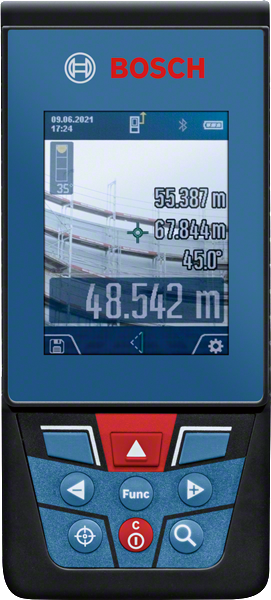

GLM 100-25 C Professional

Versatile outdoor laser measure in 100 m measuring segment with real outdoor capability

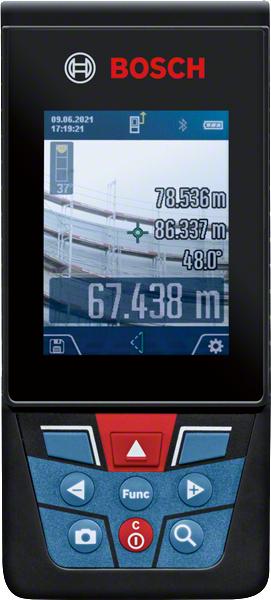

GLM 150-27 C Professional

All-in-one laser measure in 150 m measuring segment with enhanced documentation abilities

For precision over large distances, outdoors and in complex surroundings

Provides optimal readability

Via Bluetooth & MeasureOn, and USB (USB valid only for GLM 150-27 C)

Thanks to scratch resistant cover glass and IP 54

Key Features:

GLM 100-25 C
GLM 150-27 C
Measuring range
0.08 – 100.00 m
0.08 – 150.00 m
Measuring accuracy
± 1.5 mm*
± 1.5 mm*
Angle measurement range
360°
360°
Angle measurement accuracy
± 0.2°
± 0.2°

*plus use-dependent deviation

product-picture
gds-18v-1050h-anvil

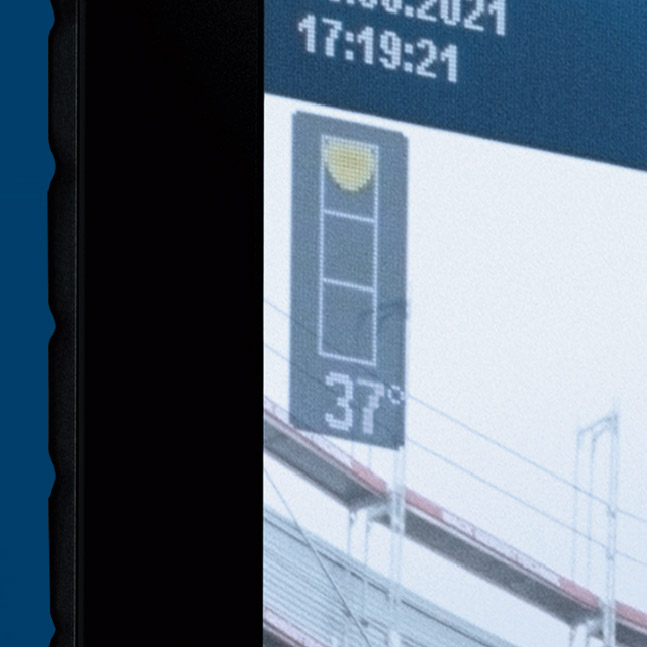

Tilt Sensor (360°)

For easy angle measurement, and quick leveling applications

gds-18v-1050h-anvil

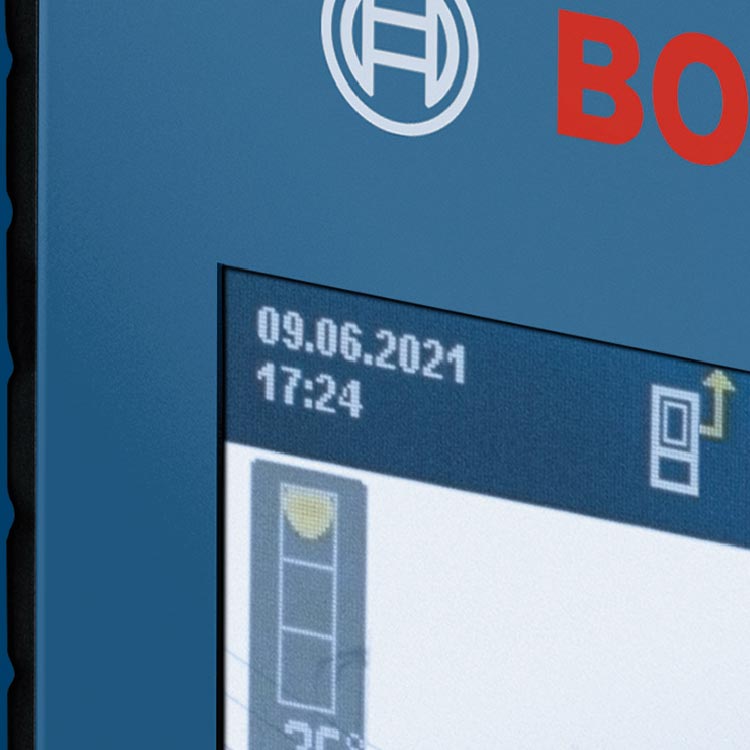

Date and time information

Stored in the memory as well. Easy way to allocate the measurements and improved documentation

gds-18v-1000-anvil

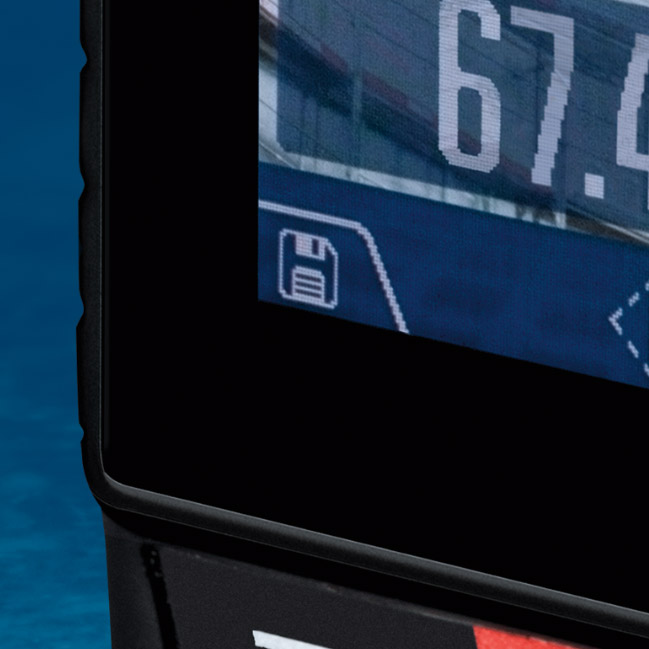

Memory

  • Automatic saving of 50 measurements
  • Saves also pictures (GLM 150-27 C)
  • Possibility to transfer the memory entries to PC via Micro-USB cable (GLM 150-27 C)
gds-18v-1050h-anvil

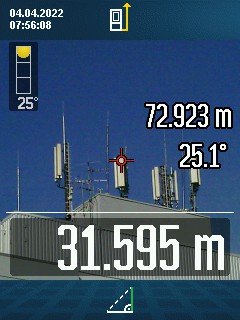

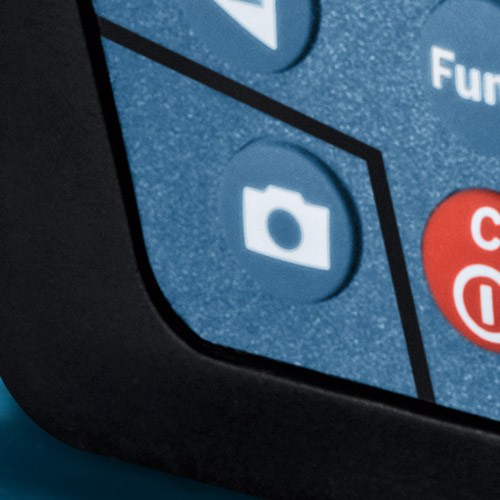

Camera viewfinder

See the target in every distance + surroundings. Switches on and off the camera picture.

hmi-module

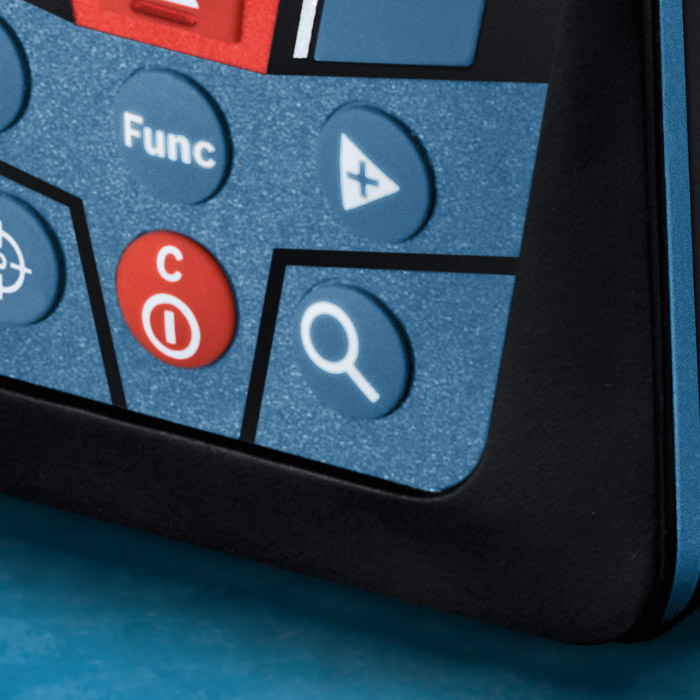

Integrated zoom function

hmi-module
gds-18v-1050h-anvil

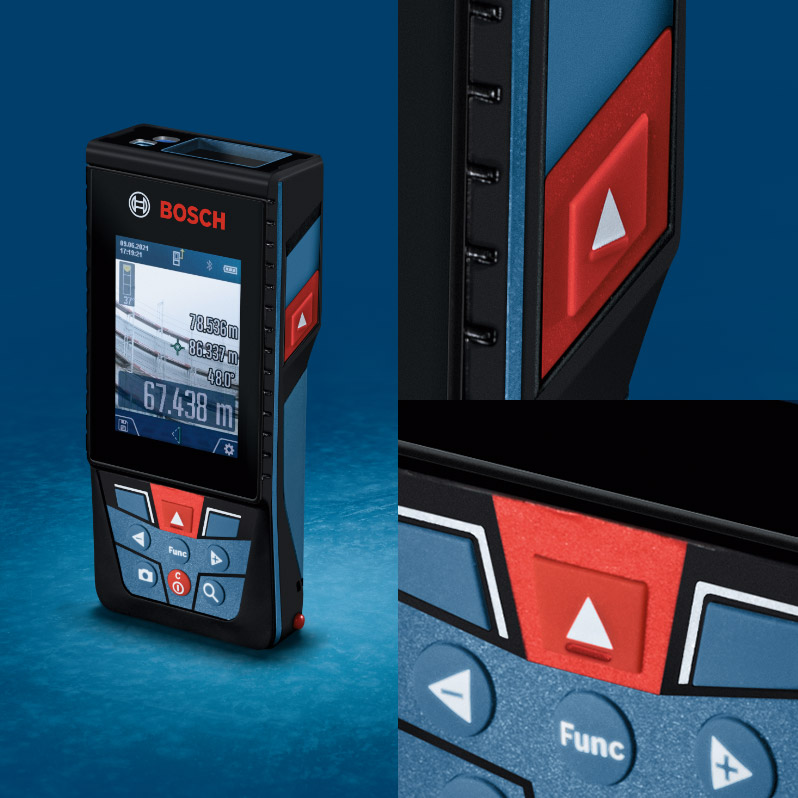

Two measuring buttons

Front and side trigger for ergonomic measurements

gds-18v-1050h-anvil

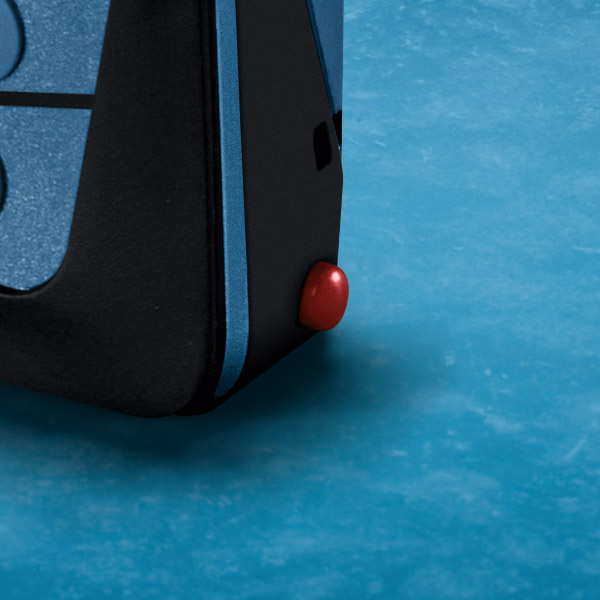

Measuring pin

With automatic position detection to avoid wrong measurements

gds-18v-1050h-anvil

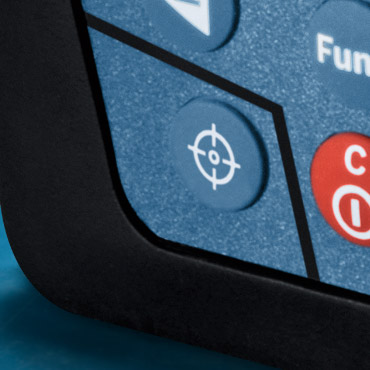

Crosshair button

See the target in every distance + surroundings. Switches on and off the camera picture.

gds-18v-1050h-anvil

Bluetooth® 4.2 low energy

For use with MeasureOn app

Big 2.8“ color display

  • IPS* technology and optical bonding* for high contrast + good readability from all viewing angles
  • Extra scratch-resistant Dragontrail glass* for demanding jobsites
  • Flip display

*explanations see FAQ

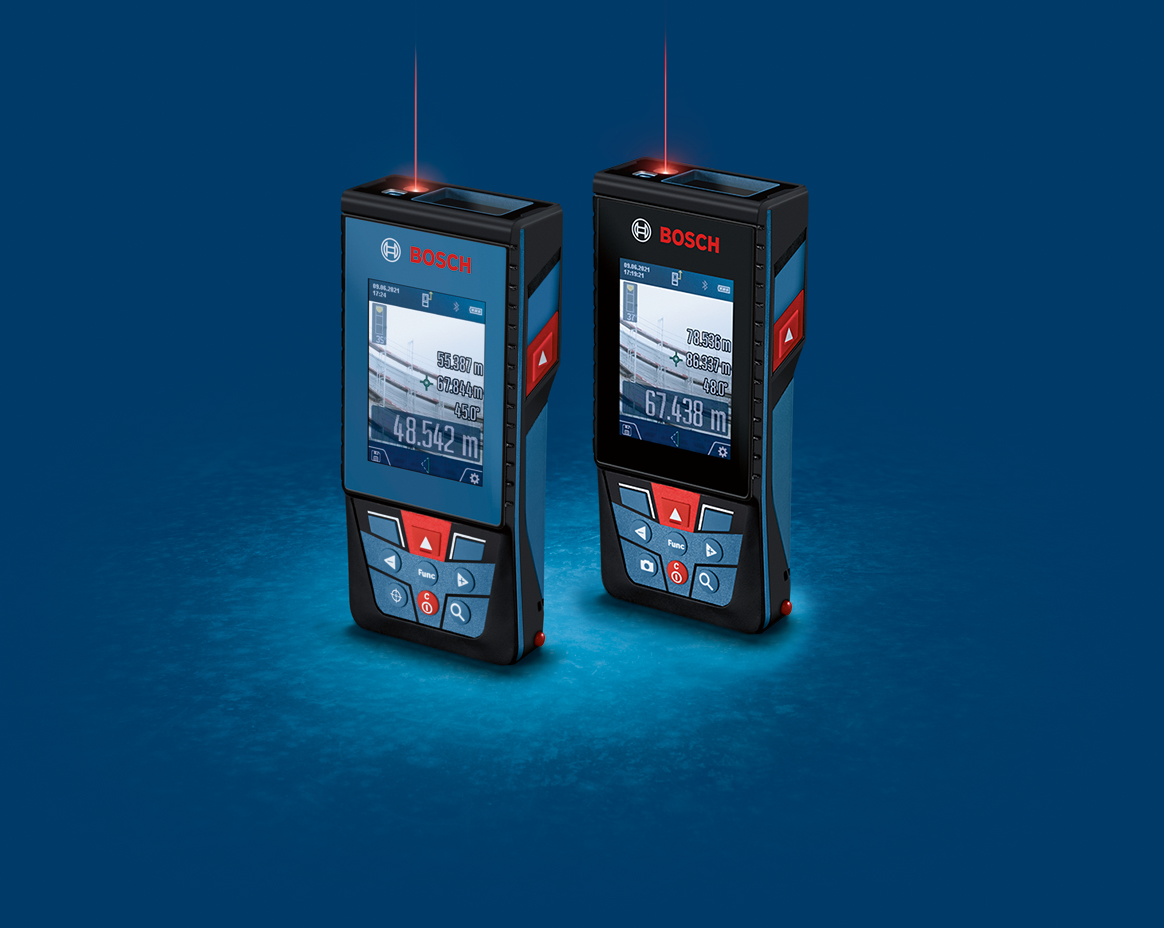

GLM 100-25 C & GLM 150-27 C Professional

GLM 150-27 C Professional only

Real time view
Scratch resistant cover glass (Dragontrail)
Bosch MeausureOn app for easy documentation and data transfer
IP54 protection against dust and splash water
2.8 inch IPS color display + optical bonding
Zoom function for precision over large distances
Automatic pin detection to avoid measurement errors
1/4 inch tripod thread
Max. breakaway torque: 1,600 Nm
Transfer of measurements via Bluetooth
Max. tightening torque: 1,050 Nm
Measuring range for incline measurement
Data transfer of pictures via USB to PC
Integrated Li-Ion 3,6 V (3120 mAh)

Demonstration

Target Groups & Applications

Landscape architect

  • Measure areas e.g. forecourt and estimate material needs
  • Send the measured values directly to the purchase responsible person
  • Check the inclination e.g. ramp for trucks
  • Document the work done

Metal worker

  • Measure hard to reach places with indirect measurement
  • Check material needs for construction
  • Handover measurement to production colleagues
  • Prepare customer offer and add picture with dimensions and comments for common understanding

Construction Manager

  • Outdoor & long-distance measurements
  • Complex surroundings & poor visibility
  • Document measurements & create floorplans on-site
  • Documentation back at the office

Architect

  • Measuring e.g. areas of rooms and compare them with existing drawings
  • Transfer measurements in the floor plan
  • Creating new floor plans with all necessary measurements and sharing them with customers, suppliers, etc.

Technical Data

GLM 100-25 C
GLM 150-27 C
Measuring range
0.08 – 100.00 m
0.08 – 150.00 m
Measuring accuracy
± 1.5 mm*
± 1.5 mm*
Measuring range for incline measurement
0 - 360° (4 x 90°)
0 - 360° (4 x 90°)
Angle measurement accuracy
± 0.2°
± 0.2°
Operating temperature
- 10 °C to + 45 °C
- 10 °C to + 45 °C
Laser diode
650 nm, < 1 mW
650 nm, < 1 mW
Laser class
2
2
Automatic deactivation (laser/power)
20 s / 5 min
20 s / 5 min
Weight, approx.
0,23 kg (incl. batteries)
0,21 kg
Dimensions
142 (176 with pin) x 64 x 28 mm (L x W x H)
142 (176 with pin) x 64 x 28 mm (L x W x H)
Dust & water protection
IP 54
IP 54
Power supply
3 x 1,5 V – LR6 (AA)
Integrated Li-Ion 3,6 V (3120 mAh)
Measurement unit
m (default) / cm / mm / ft / inch
m (default) / cm / mm / ft / inch
Memory capacity
50 (values)
50 (pictures with values)
~ 700 (pictures on internal USB drive)
Connectivity
Bluetooth® 4.2 low energy
Bluetooth® 4.2 low energy
Tripod thread
1/4" (plastic)
1/4" (metal)

*plus use-dependent deviation

Product Naming

GLM Gewerblicher Laserentfernungsmesser(Professional Laser Measure)
100 100m max measuring range
25 25 2nd Generation
25 Segment Differentiator (the higher the number the more product features)
C Connectivity (Bluetooth)
GLM Gewerblicher Laserentfernungsmesser(Professional Laser Measure)
150 150m max measuring range
27 27 2nd Generation
27 Segment Differentiator (the higher the number the more product features)
C Connectivity (Bluetooth)

Protection Class

The IP protection class designation according to DIN EN 60529 shows the extent of protection an enclosure offers with regard to contact or foreign bodies (first code number) and moisture or water (second code number). The GLM 100-25 C & GLM 150-27 C offer an IP54 protection class.

power-medium

First digit:
Solid particle protection

X No data available to specify a protection rating
0 No protection against contact and ingress of objects
1 Projected against a solid object greater than 50mm
2 Projected against a solid object greater than 12.5mm
3 Projected against a solid object greater than 2.5mm
4 Projected against a solid object greater than 1mm
5 Projected against dust limited ingress but not harmful
6 Dust thight - No ingress of dust - Two to eight hours
I P
5 4
Dust Water
power-standard

Second digit:
Liquid ingress protection

X No data available to specify a protection rating
0 None
1 Dripping water
2 Resists splashes
3 Resists light rain
4 Resists heavy rain
5 Resists low pressure jets of water
6 Resists very short periods in water
7 Resists immersion in water for 30 minutes at 1 metre
8 Resists periods of immersion under water

Find your GLM

The Bosch Professional Laser Measures product portfolio provides significant helpful features for quick and easy measurements in various applications. Find the most suitable laser rangefinder corresponding to your needs.

GLM 50-22
GLM 50-25 G
GLM 50-27 C
GLM 50-27 CG
GLM 100-25 C
GLM 150-27 C
Recommended area of use
Measurements in normal and bright indoor conditions
Long-distance measurements in normal and bright indoor and outdoor conditions
Suitable for working in sunny outdoor conditions**
Max. measuring range
50.00 m
50.00 m
50.00 m
50.00 m
100.00 m
150.00 m
IP class
IP65
IP65
IP65
IP65
IP54
IP54
Drop resistance
1.5 m
1.5 m
1.5 m
1.5 m
1.0 m
1.0 m
Vibration feedback
–
●
●
●
–
–
Tilt sensor
–
–
●
●
●
●
Bluetooth connection
–
–
●
●
●
●
Micro-USB connection for data transfer
–
–
–
–
–
●
Measuring Functions
Length
●
●
●
●
●
●
Min/max continuous
●
●
●
●
●
●
Tape measure
●
●
●
●
–
–
Big numbers
●
●
●
●
–
–
Area
●
●
●
●
●
●
Volume
●
●
●
●
●
●
Indirect height
●
●
●
●
●
●
Indirect length
–
–
●
●
●
●
Double ind. height
–
–
●
●
●
●
Trapezoid
–
–
–
–
●
●
Wall area
–
–
●
●
●
●
Stake out
–
–
●
●
●
●
Level
–
–
●
●
●
●
Memory
10
10
30
30
50
50

● function included
– function not included

**evaluation and comparison among the listed professional laser measurer.

Transfer to PC

Possibility of transferring GLM 150-27 C measurements with image to the PC via Micro USB Cable. The transferred .jpg element provides the following details in addition to the image information.

user-interface-default
1

Time format (24h ,am/pm) and date format (DD.MM.YYYY, MM/DD/YYYY, YYYY/MM/DD) can be selected in the system settings.

Measuring point of the tool, start from rear, pin, front or tripod mount

Angle of tilt at the time of measurement

For precision over large distances, outdoors and in complex surroundings

Display depending on selected measurement function, e.g.: Display of measurement series, measuring steps (intermediate results) with measuring results for calculation of the selected measuring function.

E.g. area: 10m (step 1), 3m (step 2) ⇒ 30m² (result)

Result of the measuring function with unit. Unit of measurement can be selected in the system settings (m (default) / cm / mm / ft / inch).

Applied measurement function

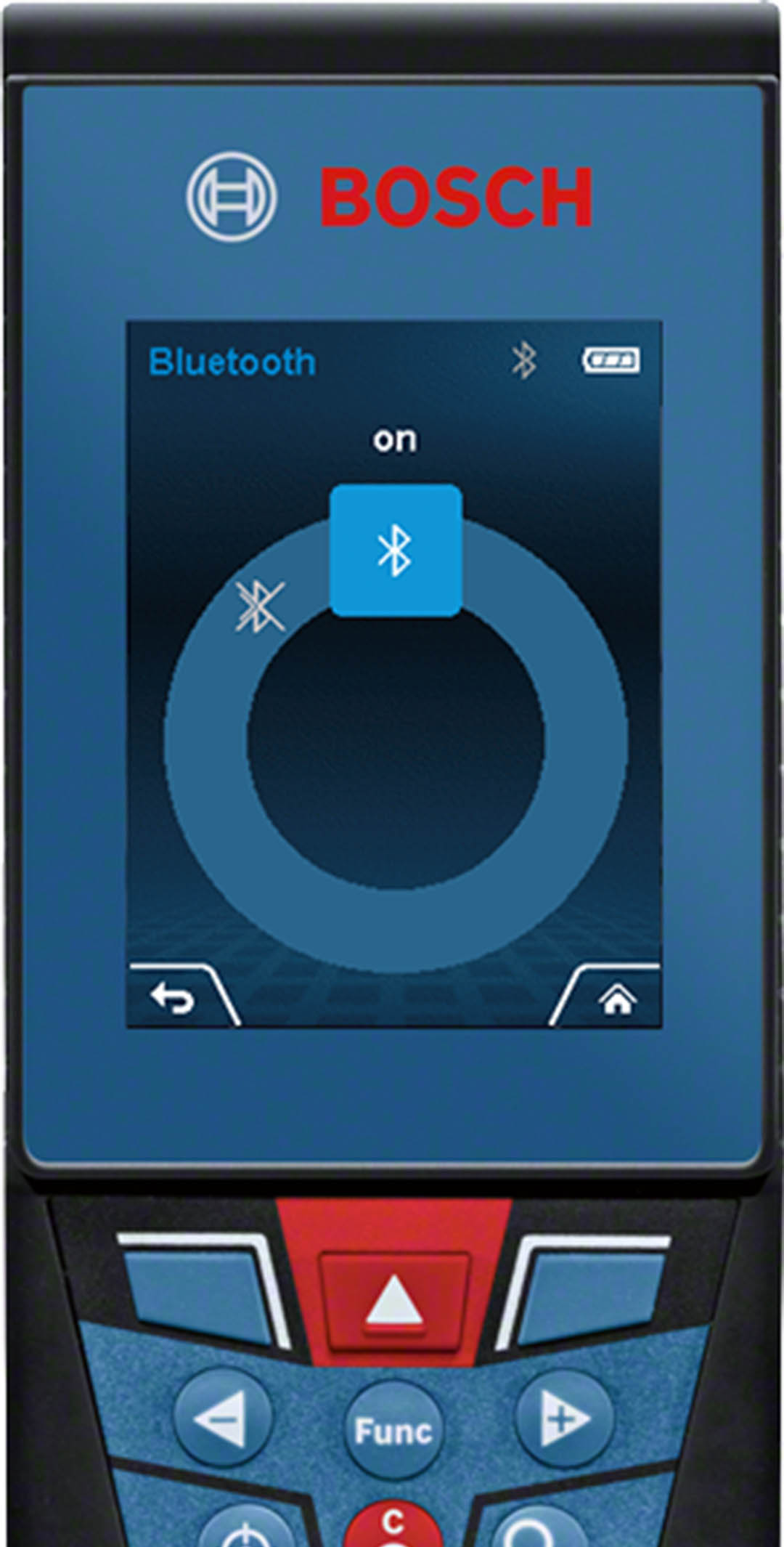

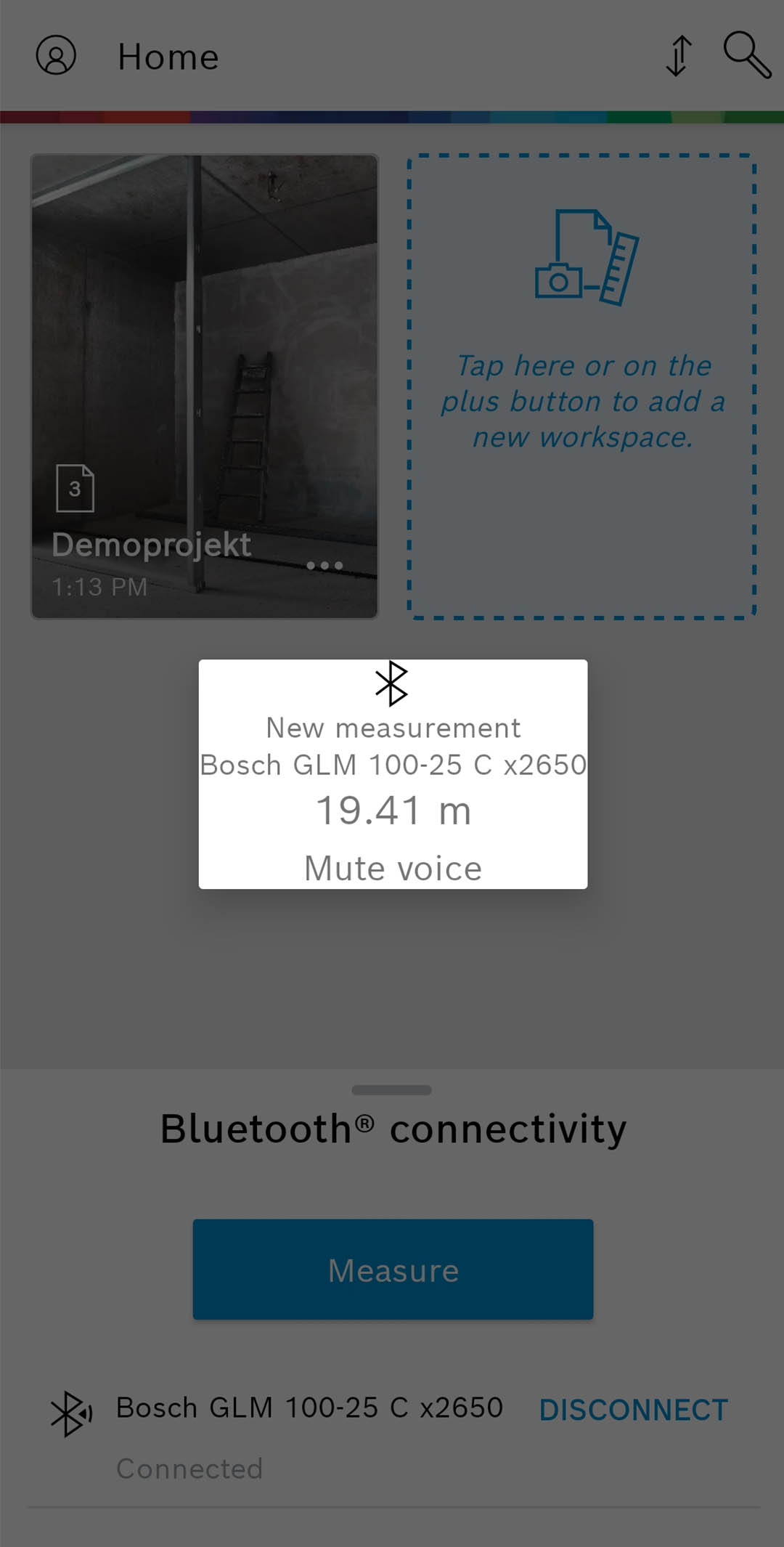

Bluetooth connection

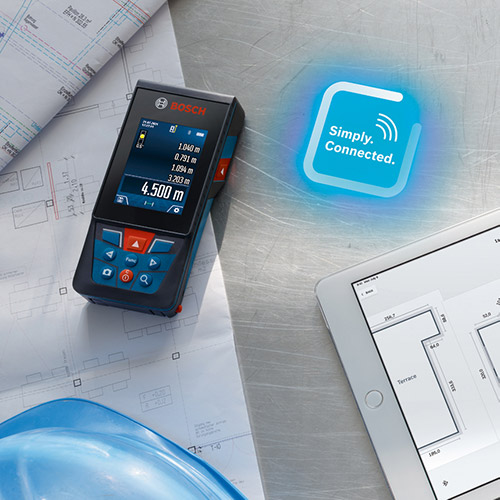

Use Bluetooth together with MeasureOn

Connect the GLM 100-25 C & 150-27 C via Bluetooth® 4.2 Low Energy to the MeasureOn app to make use of advanced documentation possibilities

Connect your Tool

  • Transfer and save measurements
  • Picture mode: transfer measurements directly into pictures

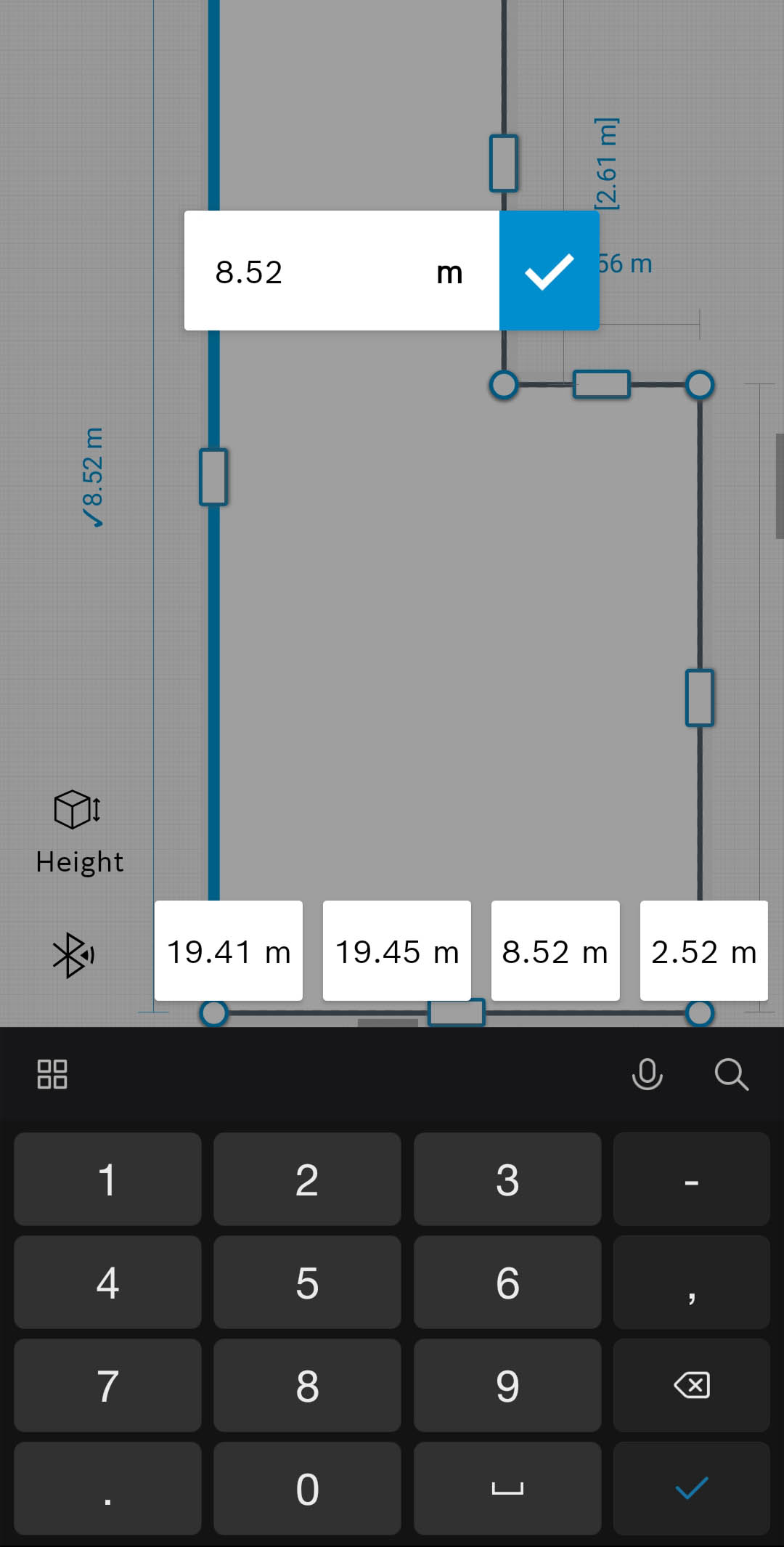

  • Sketch floor plans, add photos, notes etc.

    • Remote control

    use MeasureOn to remotely control the GLM 100-25 C & 150-27 C via smartphone and tablet. Range: approx. 10 m (depending on the surrounding conditions e.g. obstacles)

    Error-free transfer of Measurements

    Your efficiency upgrade: a list of measurements, easily transferred via Bluetooth® use via drag & drop.

    Accessories

    Available accessories for the GLM 100-25 C & 150-27 C (not in scope of delivery)

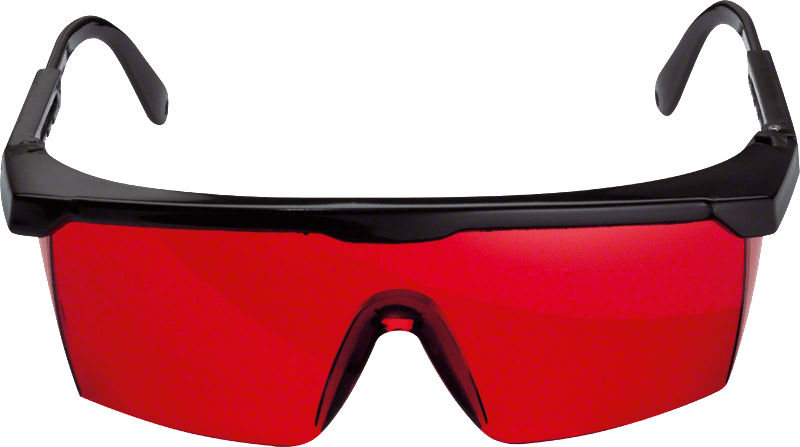

    Laser viewing glasses (red laser)

    Art.-Nr: 1.608.M00.05B

    Improve the visibility of the red laser beam and make it easier to work in adverse lighting conditions

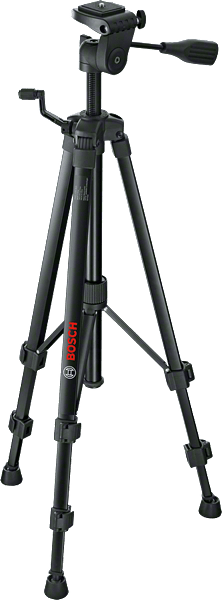

    Tripod BT 150

    Art.-Nr: 0.601.096.B00

    Robust aluminium design. Stable on any floor, for working heights from 55 to 157 cm

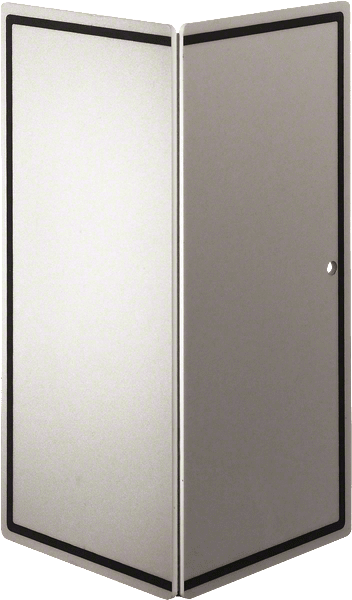

    Target plate

    Art.-Nr: 2.607.001.391

    Suitable for better reflection of the laser beam, for example outdoors or on dark surfaces

    FAQ

    The IPS display improves the usability of the device and helps the user to read the display from different viewing angles. In addition, IPS displays are brighter.

    Optical bonding refers to the protective glass that is bonded directly to the display to improve its readability. This means there is no condensation or "fog" between the protective glass and the screen. The reflection of sunlight can also be reduced by optical bonding. These user benefits of the GLM 100-25 C & 150-27 C are particularly advantageous in outdoor applications.

    GLM 100-25 C & 150-27 C work with the all-new Bosch app “MeasureOn”. Better usability and a new cloud infrastructure for multi device usage are the main improvements compared to the old Measuring Master app.

    MeasureOn | Appstore MeasureOn | Google Play

    The typical measuring accuracy is ± 1.5 mm. It’s realized under typical, meaning favorable conditions (reflective target, no adverse light conditions, normal temperature & humidity). Under unfavorable conditions the measuring accuracy is ± 3.0 mm (reflective target, strong backlighting, normal temperature & humidity). Additionally, a deviation per meter needs to be added: (± 0.05mm/m in favorable conditions; ± 0.15mm/m in unfavorable conditions)

      E.g.
    • Measuring accuracy 10 m in favorable conditions: ± 1.5 mm + (10 m * ± 0.05 mm/m) = ± 2 mm
    • Measuring accuracy at 10 m in unfavorable conditions: ± 3.0 mm + (10 m * ± 0.15 mm/m) = ± 4.5 mm

    The typical accuracy is a good indicator for the engineering and manufacturing quality of a laser rangefinder. You can see that many LPP products have a typical accuracy of ± 3mm or even more.

    Yes, the with the app “MeasureOn” measurements can be started and transferred remotely. Range: approx. 10 m (depends on surrounding conditions e.g. obstacles)

    MeasureOn | Appstore MeasureOn | Google Play

    GLM 100-25 C & 150-27 C are certified according to the ISO Norm 16331-1, which guarantees working range and accuracy of a laser rangefinder

    Yes, same as the measurements. Requirement: Camera switched on while measuring.

    No, only the measurements. Reason why: with Bluetooth LE it takes approx. 5-7 minutes per picture. But it’s possible to transfer the pictures to the PC via Micro-USB-Cable (in scope of delivery).

    QVGA (320 x 240 pixels); Format “jpg”
